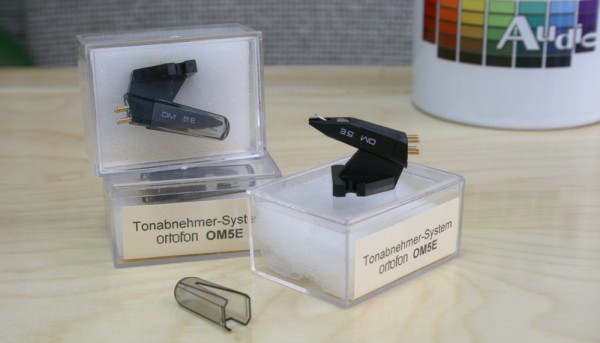

Ortofon OM5-E Pikap İğnesi « Tayf Elektronik

Ödediğiniz paranın hakkını sonuna kadar veren kaliteli bir üründür. Muadillerinden daha üst sounda sahip bir pikap iğnesi.



TECHNICAL DATA

OM 5 E

Output voltage @ 1000 Hz,
5cm/sec.

4 mV

Channel balance @ 1 kHz

2 dB

Channel separation @ 1 kHz

22 dB

Channel separation @ 15 kHz

15 dB

Frequency range

20-25,000 Hz

Frequency response

20-20,000 Hz + 2 / – 3 dB

FIM distortion @ recommended
tracking force, DIN 45.542

< 1%

Tracking ability @ 315Hz @
recommended tracking force

65 µm

Compliance, dynamic, lateral

20 m/mN

Stylus type

Elliptical

Stylus tip radius

r/R 8/18 m

Equivalent stylus tip mass

0.5 mg

Tracking force range

1.5-2.0 g (15-20 mN)

Tracking force, recommended

1.75 g (17.5 mN)

Tracking angle

20°

Internal impedance, DC resistance

750 Ohm

Internal inductance

450 mH

Recommended load resistance

47 kOhm

Recommended load capacitance

200-600 pF

Cartridge colour, body/stylus

Black/Black

Cartridge weight

5 g

Replacement stylus unit

Stylus STY-5E
